Graco Bulldog 10:1 Displacement Pump

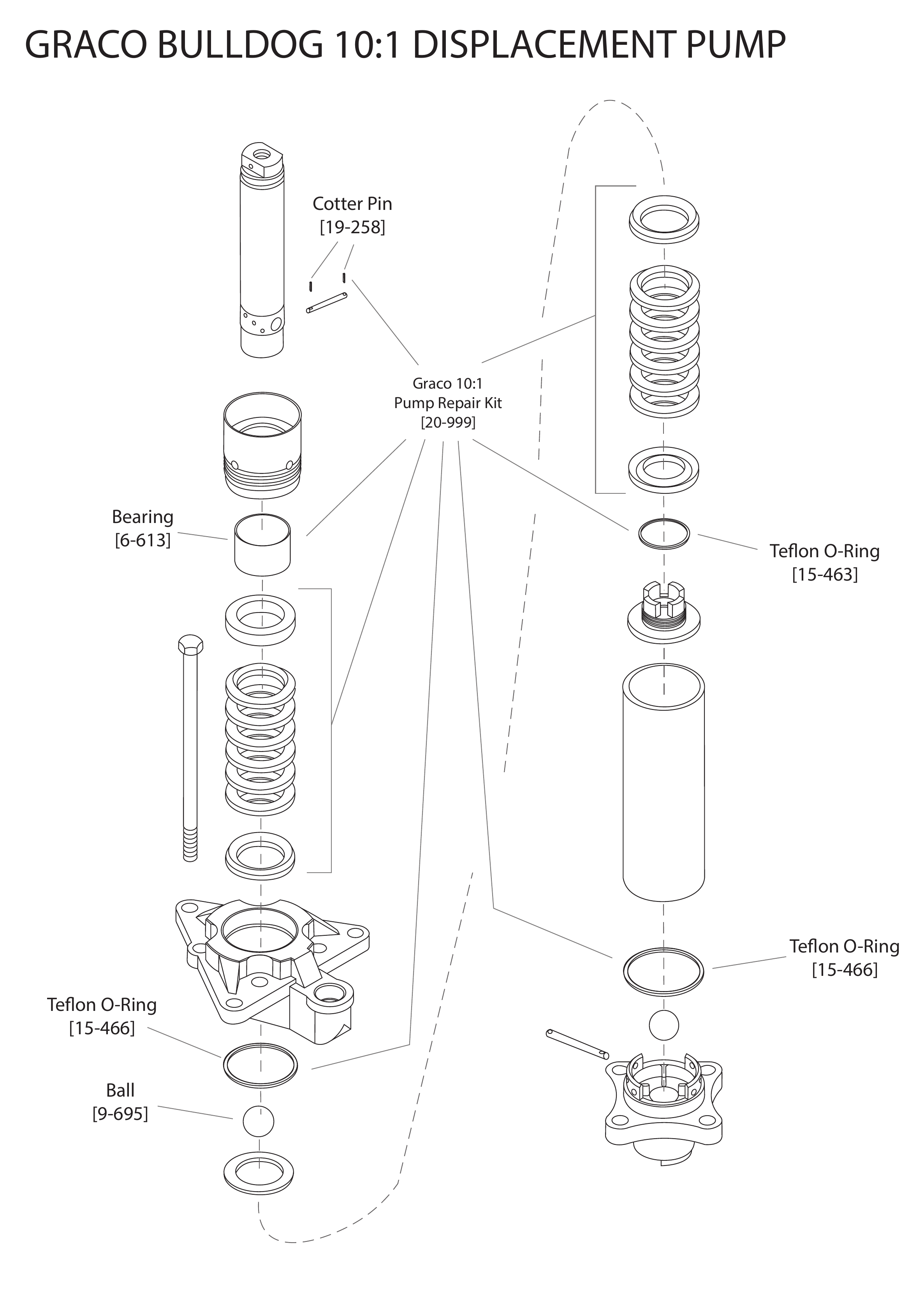

Use the exploded diagram to identify the component you need, then click the matching part in the breakdown below to view it or add it to your cart.
Open full-size diagram ↗
Parts breakdown
Every part labelled on the diagram is listed below by its Bedford SKU. Find your part on the diagram, match the SKU, then add it straight to your cart.
| Part | Category | Bedford SKU | Replaces | Price | |
|---|---|---|---|---|---|
| O-Ring | 15-463 | Graco 166-623 | $4.40 | View | |
| O-Ring | 15-466 | Graco 166-624 | $8.50 | View | |
| Individual Sprayer Repair Parts | 19-258 | Graco 100-063 | $3.96 | View | |
| Pump Repair Kit | 20-999 | Graco 207-581 | $614.44 | View | |
| Gasket / Washer | 6-613 | Graco 168-283 | $19.66 | View | |
| Individual Sprayer Repair Parts | 9-695 | Graco 101-968 | $126.04 | View |
Bedford Precision Parts manufactures compatible replacement parts for use with Graco equipment. Graco and any model names shown are trademarks of their respective owners, used here for compatibility reference only. Bedford Precision Parts is not affiliated with, sponsored by, or endorsed by Graco.
