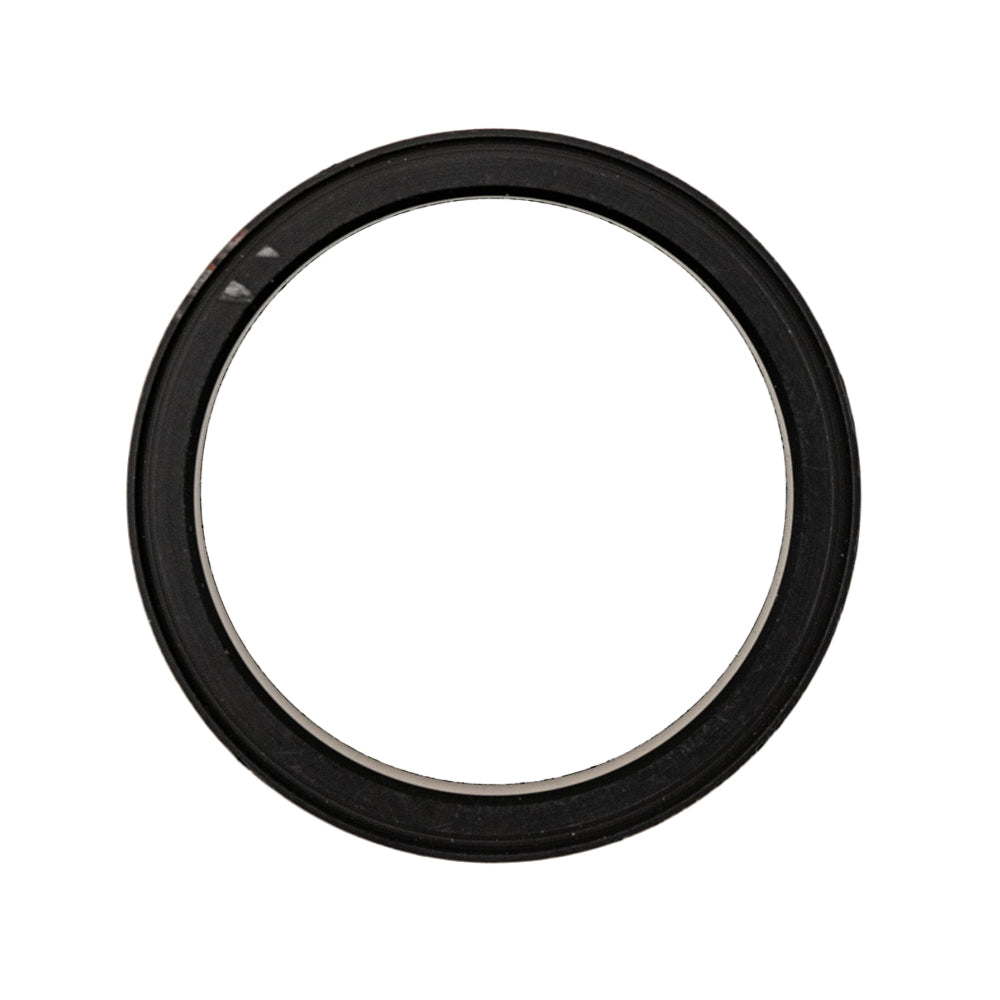

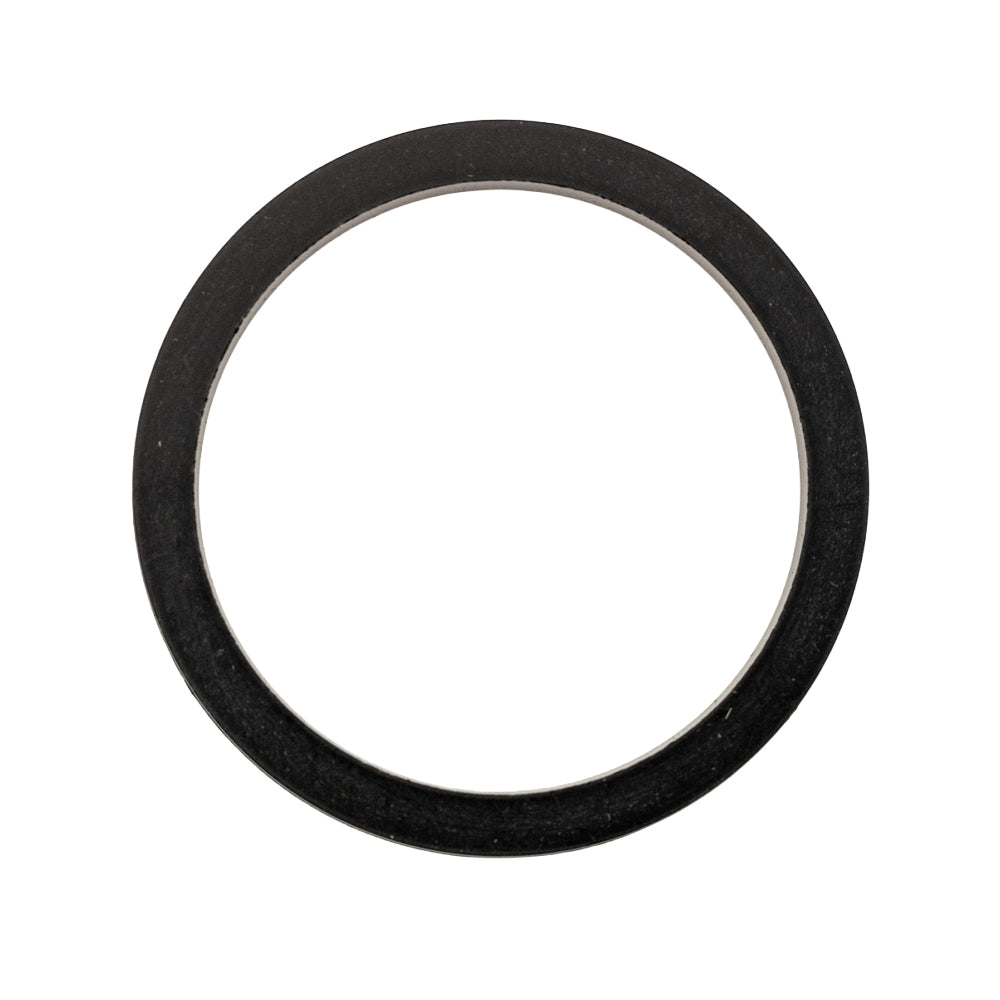

Graco 196928 Replacement Piston Guide

SKU: 42-4010
In stock
Replacement for: Graco 196928, Graco 196-928
Guide, Piston
$25.90
Ships same day if order placed before 3pm EST

Ships same day if order placed on M-F before 3pm EST

Hassle-free Returns within 10 Days

Hassle free returns (see policy)

Free shipping on Orders over $20

Free shipping on orders over $20

Questions? Contact our Expert, Garth

Email (914) 241-2211

The Bedford 42-4010 is a compatible replacement for Graco parts 196928 and 196-928 — the piston guide used in Graco spray equipment. This guide keeps the reciprocating piston tracking dead-center in its bore, giving the moving part a renewable wear surface so side-load rubs the guide instead of the cylinder and packings around it.

Common reasons for replacement:

  • Renewed during a fluid-section rebuild
  • Play or knock developing as guide clearance opens up
  • Accelerated packing wear from a rod running off-center
  • Scoring visible on the guide surface at teardown

Manufactured to OEM-equivalent dimensions for proper fit and performance. Compatible Graco equipment models are listed in the Compatible Equipment section below, where available.
