Las puntas Bedford® brindan el mejor acabado y brindan resultados profesionales confiables para todos los proyectos.


El ángulo de corte en V rectificado con precisión permite que las puntas Bedford® produzcan un sonido silencioso. Esto produce el ventilador perfecto y hace que su trabajo sea mucho más agradable. ¡Se nota la calidad!

Tip Types

Not sure which type of tip you need? Click here to see our tip type comparison chart to find the right one for your job.

Consejo estándar

For: General Purposes

Compatible with Graco® RAC® 5, True Airless® Equipment and other OEM

Punta de acabado fino

For: Fine Finish Purposes

Compatible with Graco® RAC® 5, Titan® SC-6® Equipment and other OEM

Punta de cañón grande

For: More Robust Body, General Purposes

Compatible with Graco® RAC® X

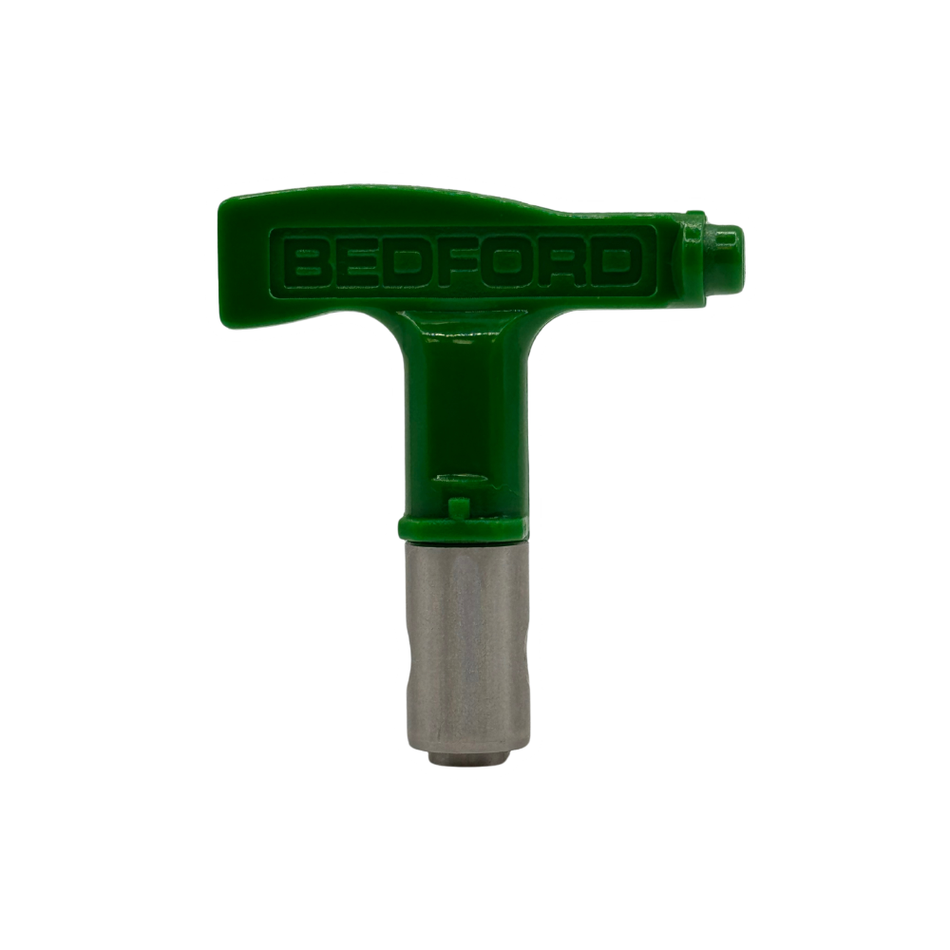

Punta de baja presión de acabado fino

For: Ultra-Fine Finish Purposes

Compatible with Graco® RAC® X, FF LP® Equipment

Punta de rayado de línea

For: Line Striping Applications

Compatible with Graco® RAC® 5 and other OEM Equipment

Puntas de alta presión

For: Heavy-Duty & Industrial Purposes

Compatible with Graco® RAC® XHD® Equipment

Filtrar los productos

El precio más alto es $681.83
$
$
Borrar todo

1005 Productos

Choosing the Right Spray Tip Type

Bedford carries direct-fit replacements for every major Graco spray tip series.

Tip TypeReplacesGuardBest ForPressureKey Advantage
StandardGraco 286-seriesRAC 5 / SC-6General purpose — walls, exteriors, fences, decksUp to 5,000 PSIMost versatile; widest size range
Fine FinishGraco 671-seriesRAC 5 / SC-6Cabinets, furniture, trim, doorsUp to 5,000 PSIFiner atomization, lower overspray
Large BarrelGraco LTX-seriesRAC XHigh-volume production — walls, ceilingsUp to 5,000 PSI50% longer fan life; higher flow
Fine Finish Low PressureGraco FFLP-seriesRAC XFine finish at reduced pressureUp to 5,000 PSISpray at half pressure with half the overspray
High PressureGraco XHD-seriesXHDElastomerics, epoxies, block fillersUp to 7,250 PSIExtreme high-pressure industrial
Line StriperGraco LL5-seriesRAC 5Parking lots, roads, fieldsUp to 5,000 PSISharp, consistent line edges

Graco Spray Tip Size Chart

Every spray tip uses a three-digit size code. First digit doubled = fan width. Last two digits = orifice in thousandths.

SizeFanOrificeBest ApplicationsMaterials
3106".010"Touch-ups, detail workStains, lacquers
4158".015"Trim, doors, cabinetsEnamels, light latex
51510".015"Interior walls, ceilingsLatex paints
51710".017"Interior and exterior wallsLatex, light coatings
51910".019"Exterior walls, broad surfacesExterior latex, heavier coatings
62112".021"Large exteriors, fences, decksPrimers, heavy latex

Tip: Smaller orifices (.007–.013) for stains and lacquers. Medium (.015–.019) for latex. Larger (.021+) for primers and heavy coatings.

Why Contractors Replace Graco Tips with Bedford

Bedford Precision has manufactured aftermarket spray equipment parts for over 58 years. Every Bedford airless spray tip is engineered to match OEM spray width, orifice, and flow specs.

  • Priced below OEM — Graco paint sprayer tips need replacing every 50–100 gallons; Bedford cuts that recurring cost significantly
  • Direct-fit replacement — drops into your existing RAC X or RAC 5 guard, no adapters needed
  • Multi-pack options — 3-packs and 10-packs for the sizes you use most
  • Same-day shipping on in-stock items (orders placed M–F before 3pm EST)

Compatible Graco Tip Guard Systems

Your tip guard determines which tips fit your sprayer:

  • RAC 5 / Titan SC-6 (Standard Barrel) — Orange guard. Accepts standard, fine finish, and line striper tips.
  • RAC X (Large Barrel) — Blue guard, 7/8” G thread. 50% longer tip life. Accepts large barrel and Fine Finish Low Pressure tips.
  • XHD (Heavy-Duty) — Gray guard, rated to 7,250 PSI. Required for high pressure tips.

Each product listing specifies guard compatibility. Always confirm your guard type before ordering.
