What is in this collection
Everything here supports the tip rather than being the tip itself — the carbide inserts that do the actual spraying inside a reversible tip, the guards that hold a tip on the gun, and the extensions and poles that get it where you need it. If you are looking for a complete reversible spray tip, start with standard tips, large barrel tips, or the full tip range.
Tip accessories, explained
Each family below does a distinct job. Every product page lists the equipment it is compatible with — confirm yours before ordering.
| Part | What it does | When you need one |
|---|
| Carbide inserts |
The carbide element inside a reversible tip that forms the orifice and the spray fan. It is the part that actually wears, and it is sized by the same three-digit code as the tip — last two digits are the orifice in thousandths, first digit doubled is the fan width. |
To restore a worn tip to its rated pattern without replacing the whole assembly. Match the insert to your tip's number and to its family below. |
| Fine finish carbide inserts |
The insert used in fine finish tips, ground for finer atomization at the same nominal size. |
When you are rebuilding a fine finish tip — a standard insert will not give the same atomization. |
| Low pressure carbide inserts |
The insert used in fine finish low pressure tips, designed to atomize properly at much lower pressure. |
When rebuilding a low pressure fine finish tip for RAC X guns. |
| Line striper carbide inserts |
The insert used in line striper tips, shaped to lay a defined line rather than a spray fan. |
When rebuilding a striping tip. Traffic paint is abrasive, so these wear faster than architectural inserts. |

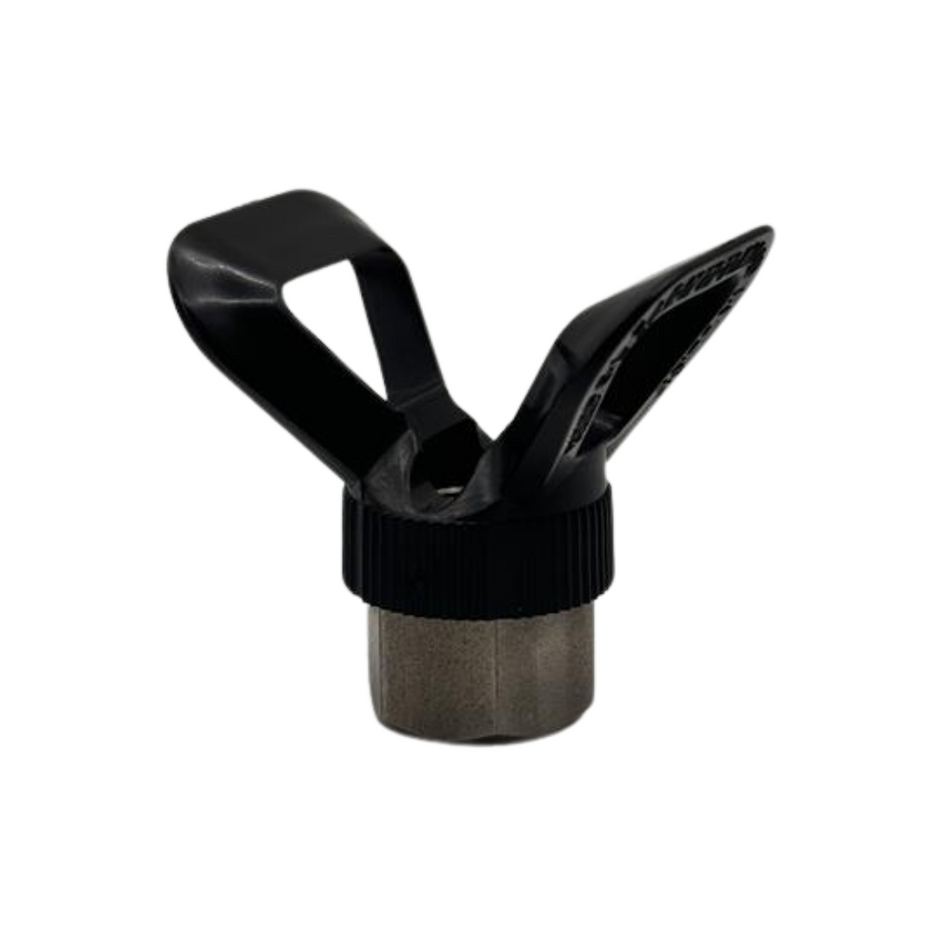

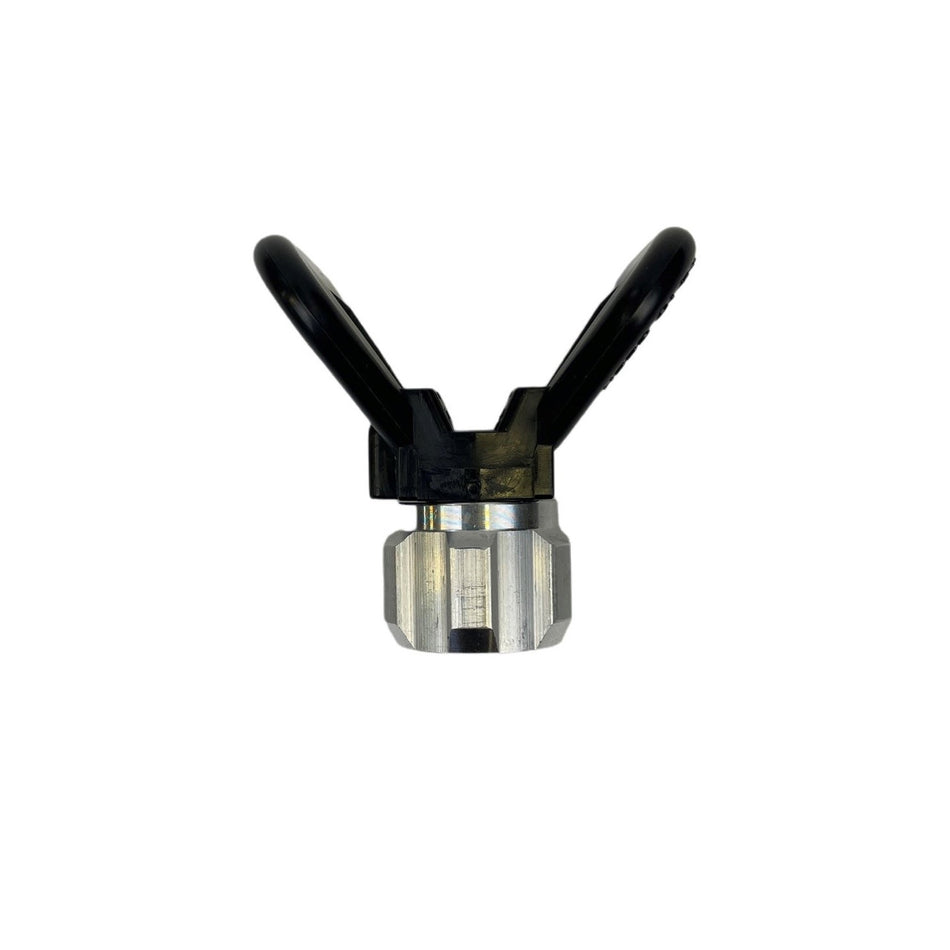

| Tip guards |

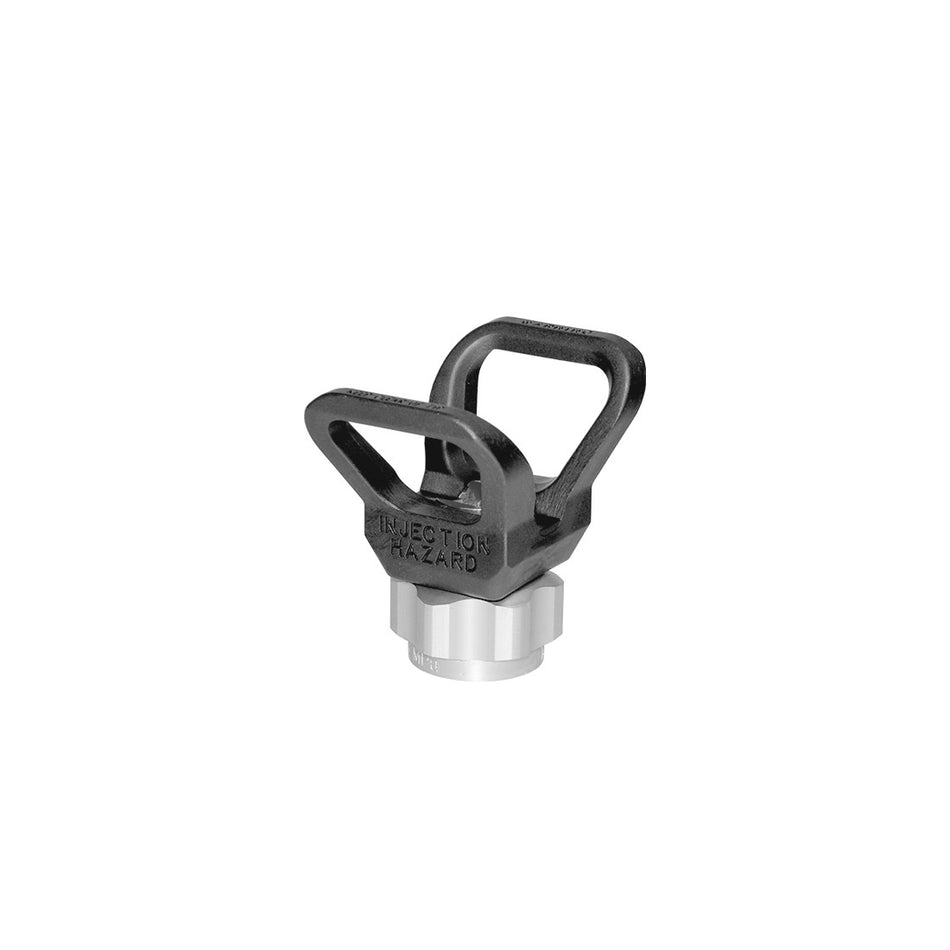

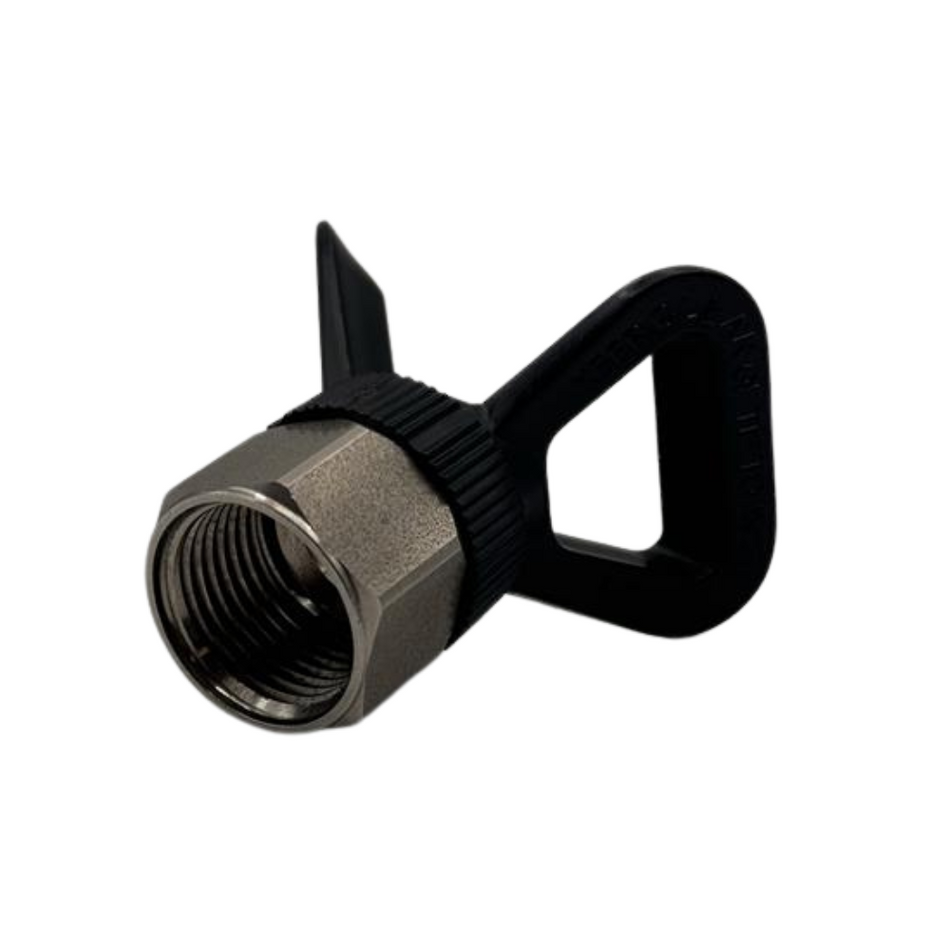

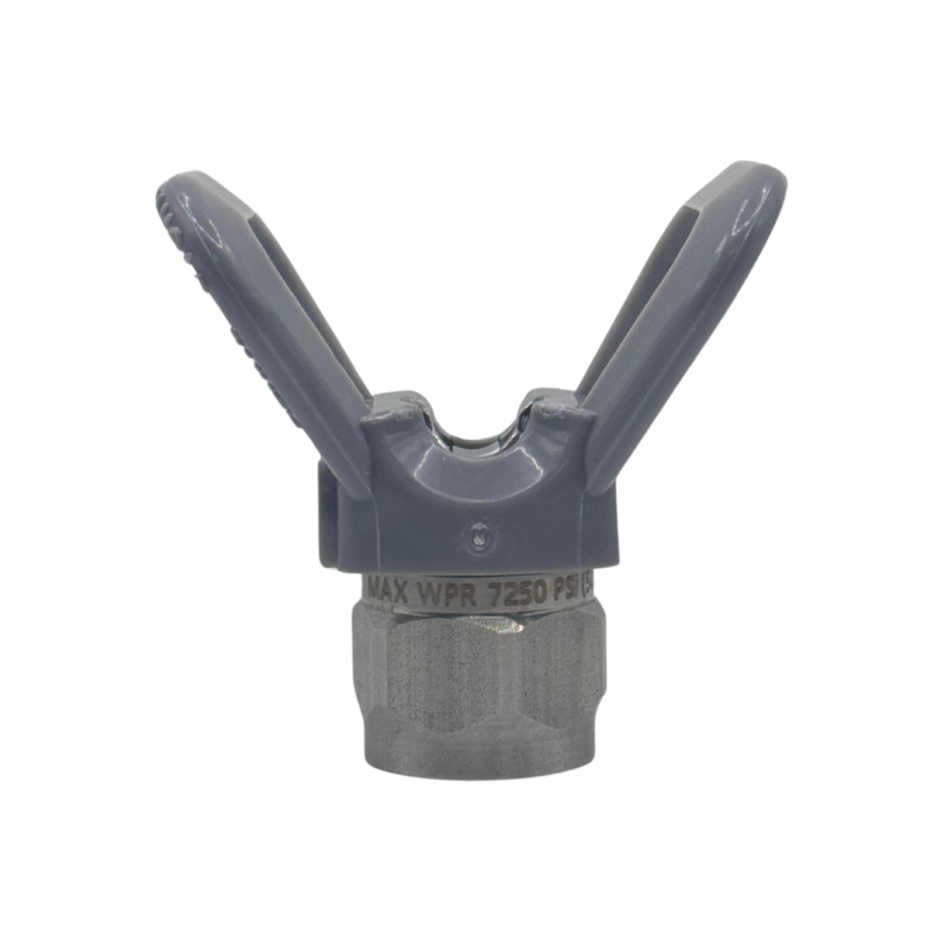

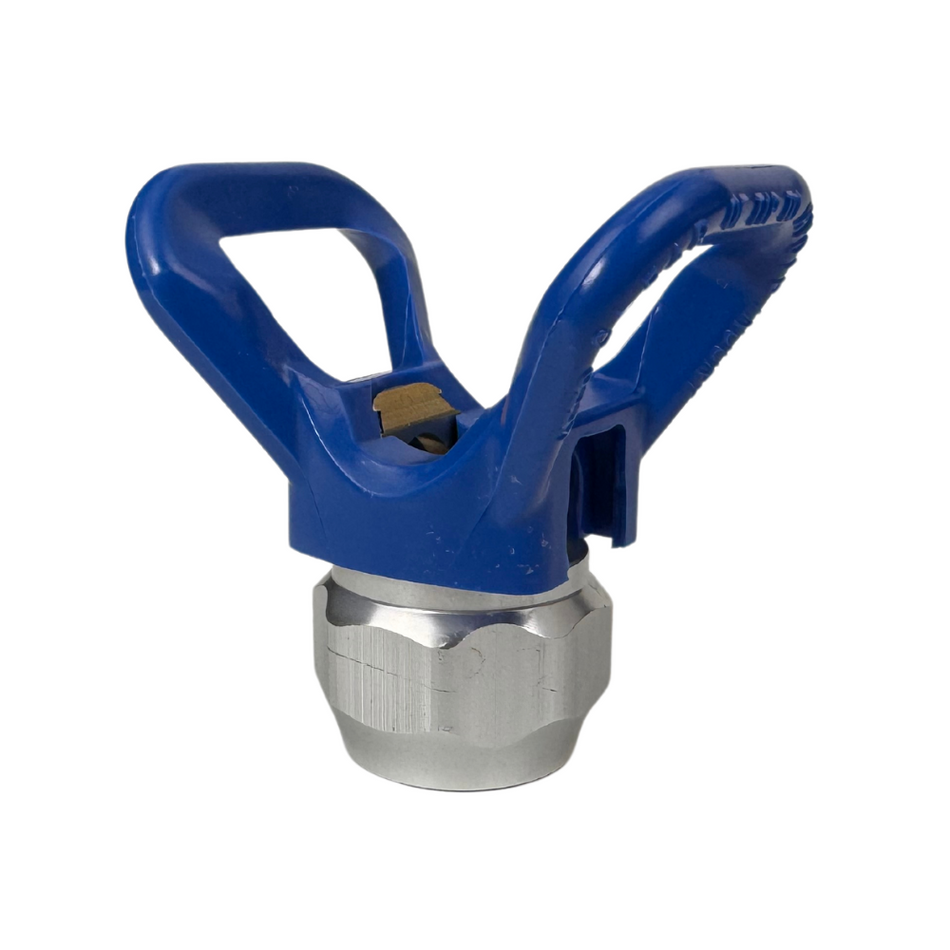

The housing that holds the tip on the gun and directs overspray away from the operator. Sold in standard-barrel, large-barrel, flat, and heavy-duty patterns, with the thread size stated on each page. |
When the guard is cracked, cross-threaded, or worn at the seat — or when you change to a tip family that needs a different barrel. |

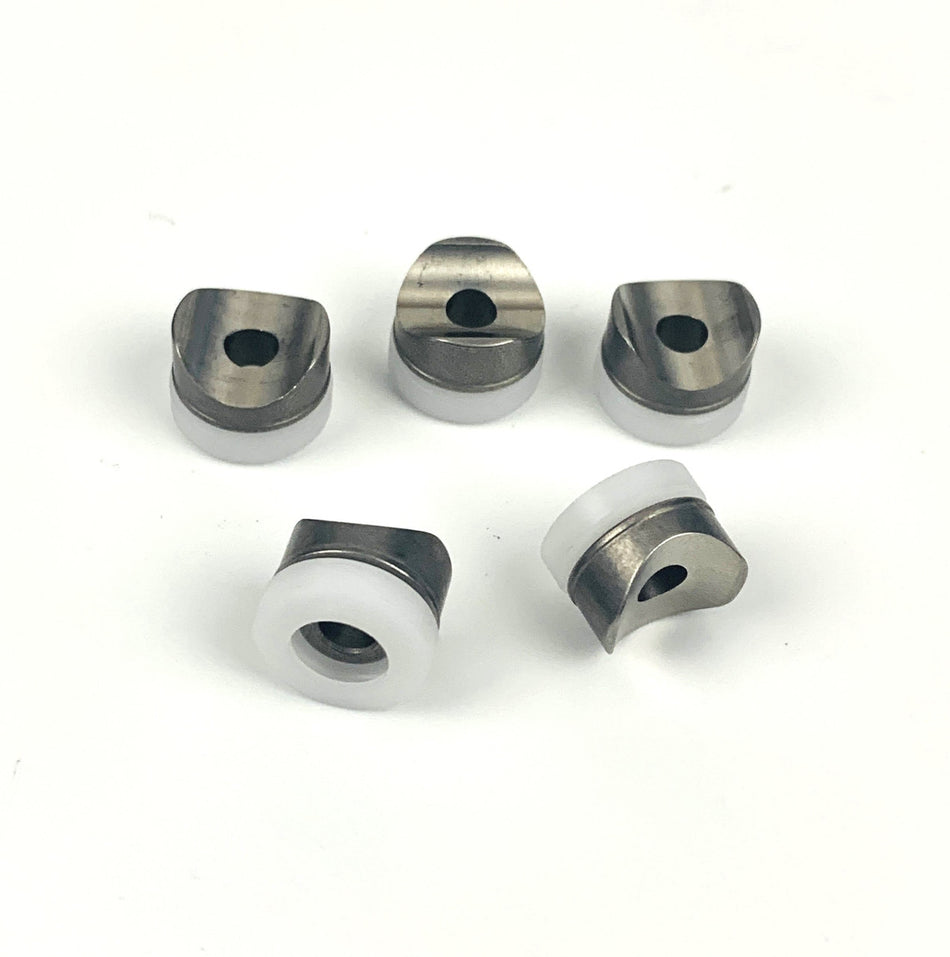

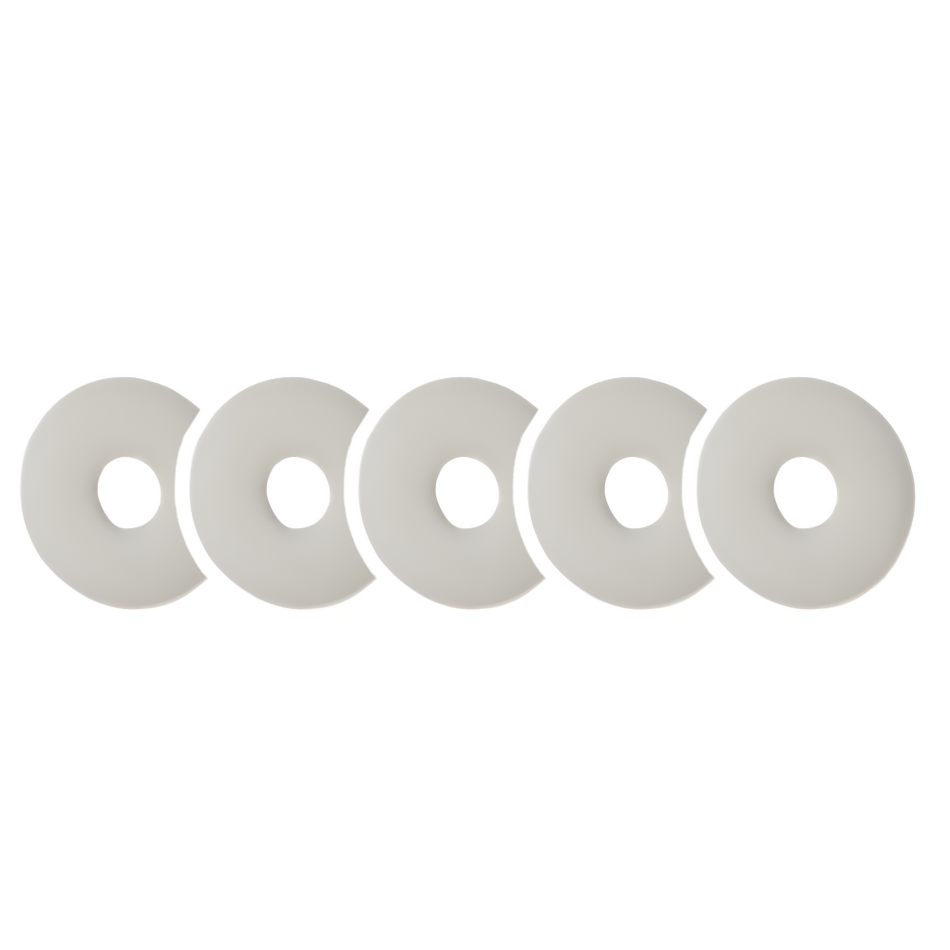

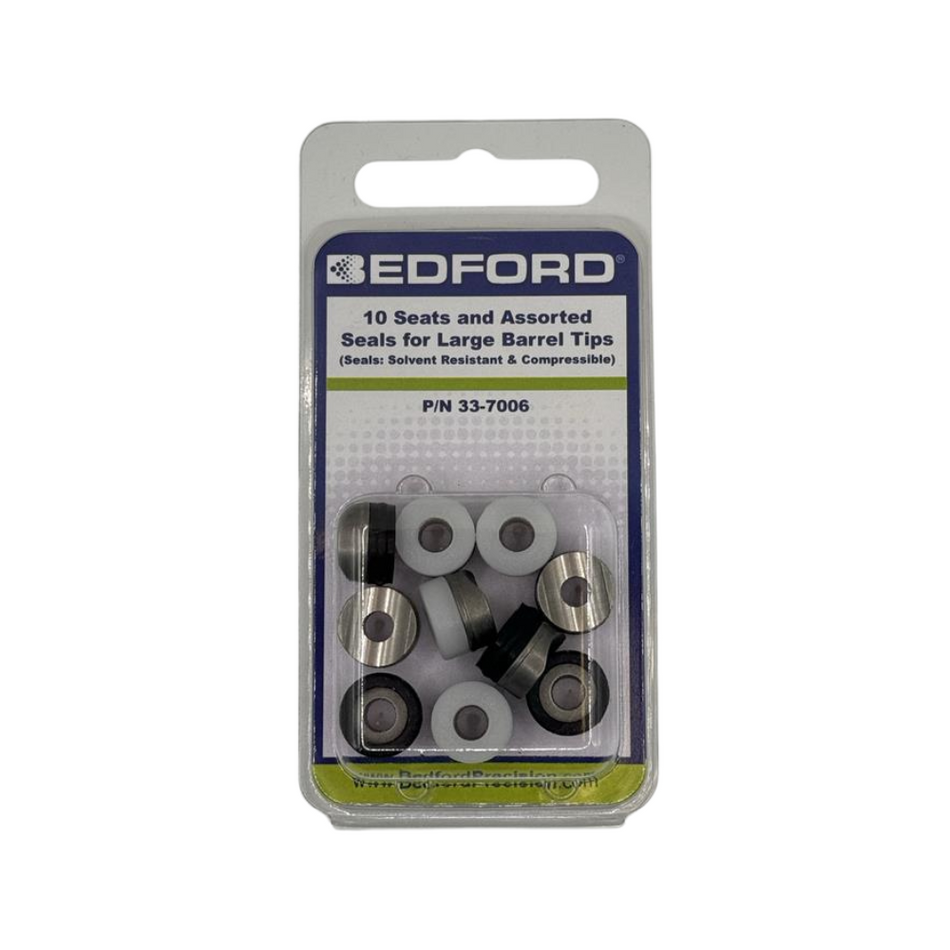

| Tip seats & seals |

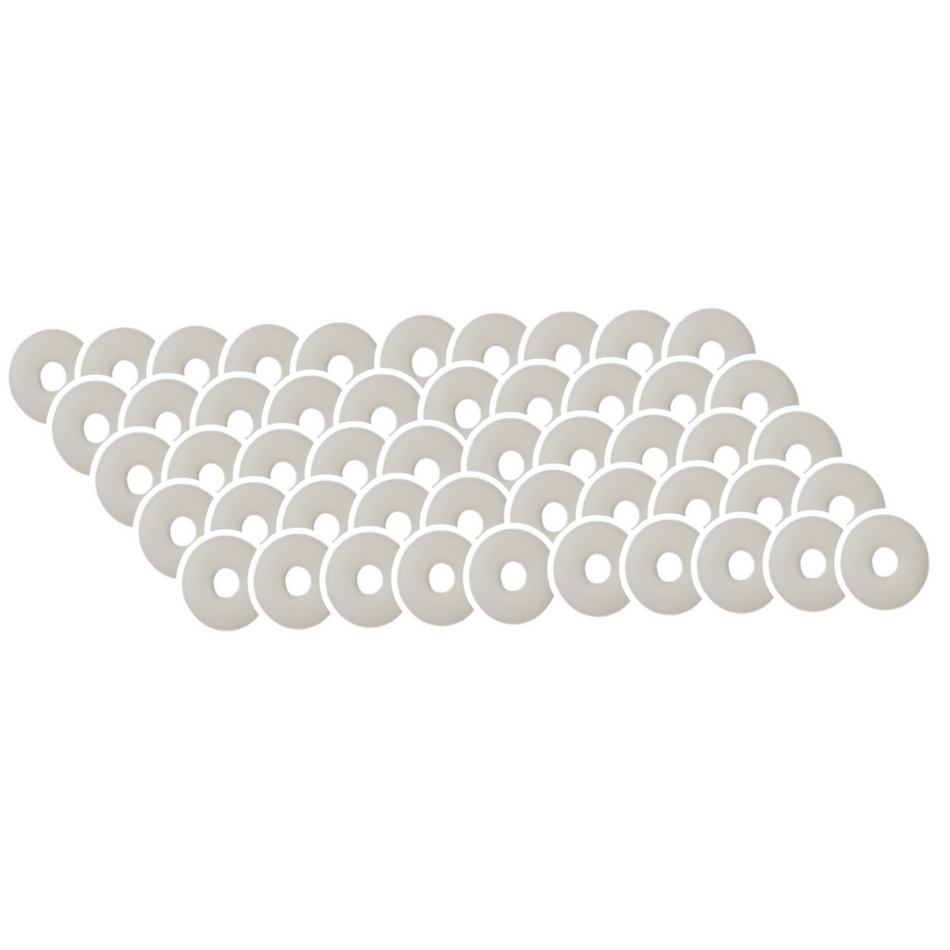

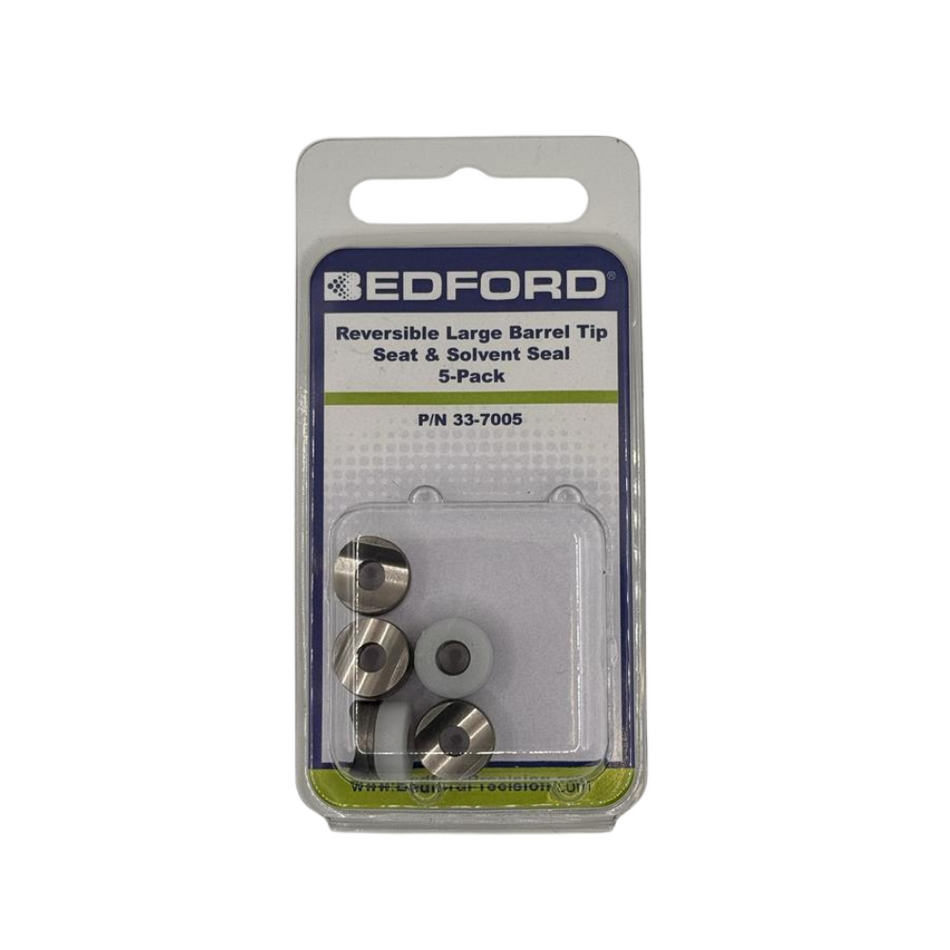

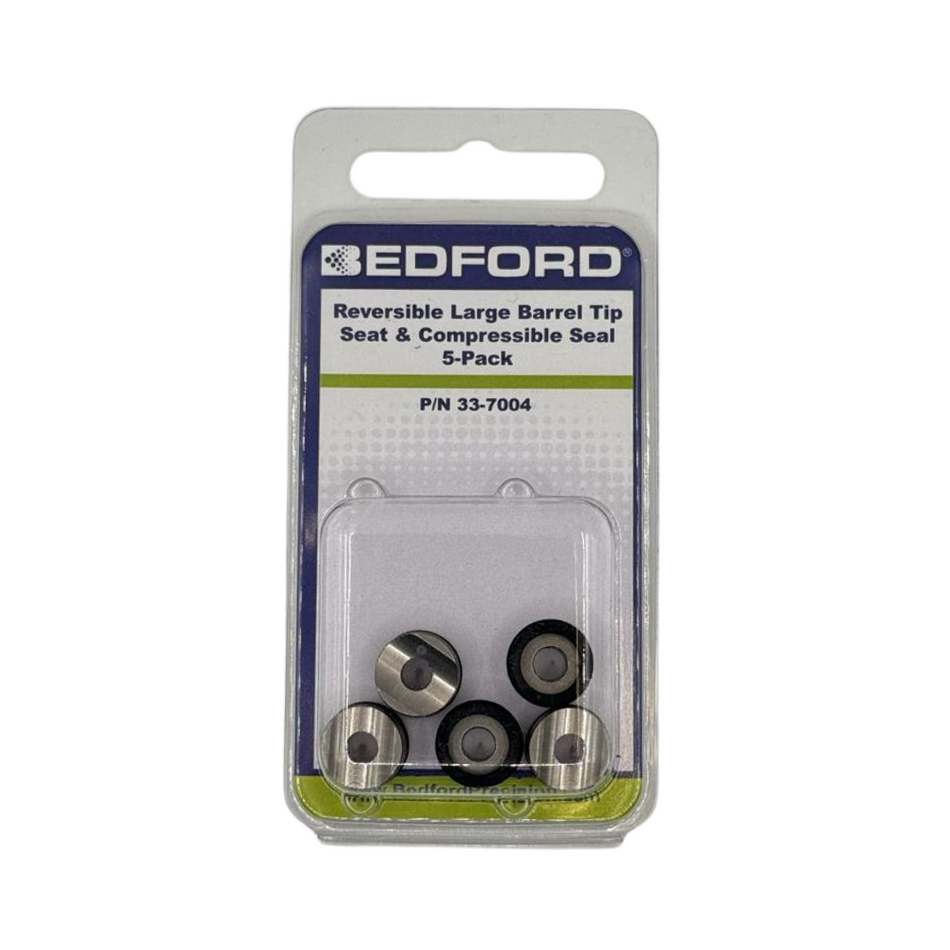

The seal that sits between the tip and the guard and holds pressure at that joint. |
When paint weeps around the tip at the guard, or after repeated tip changes have flattened the seal. These are consumables. |

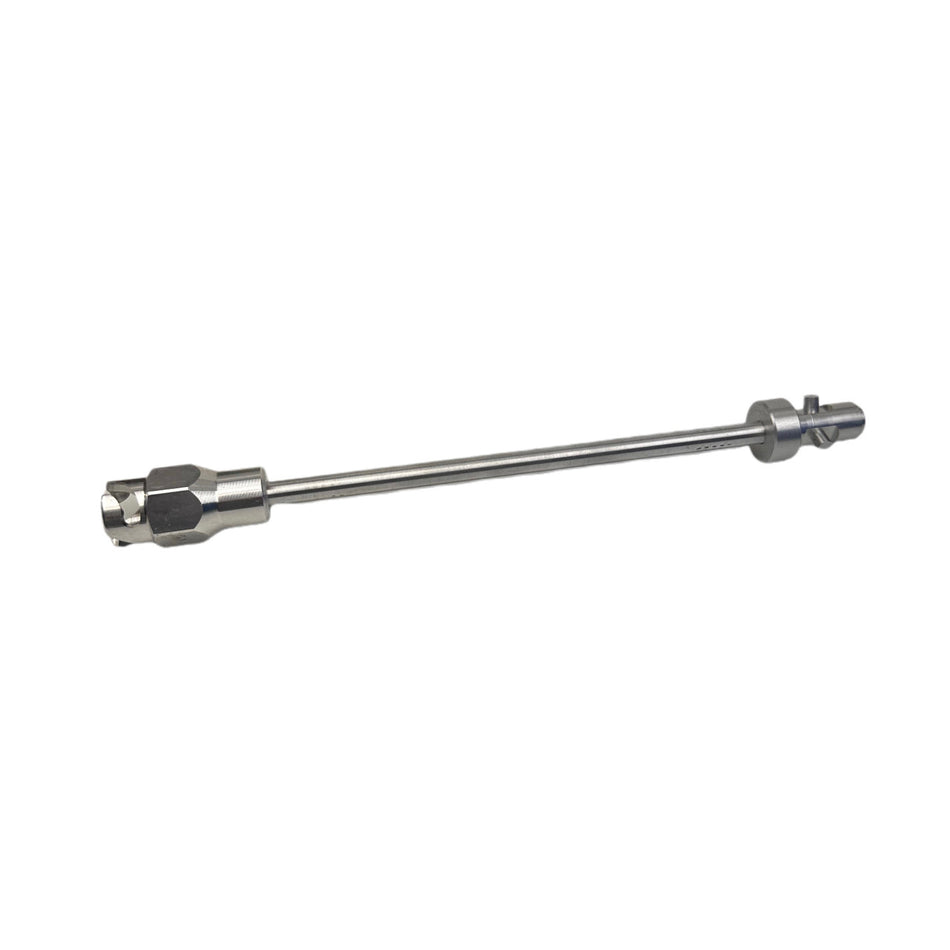

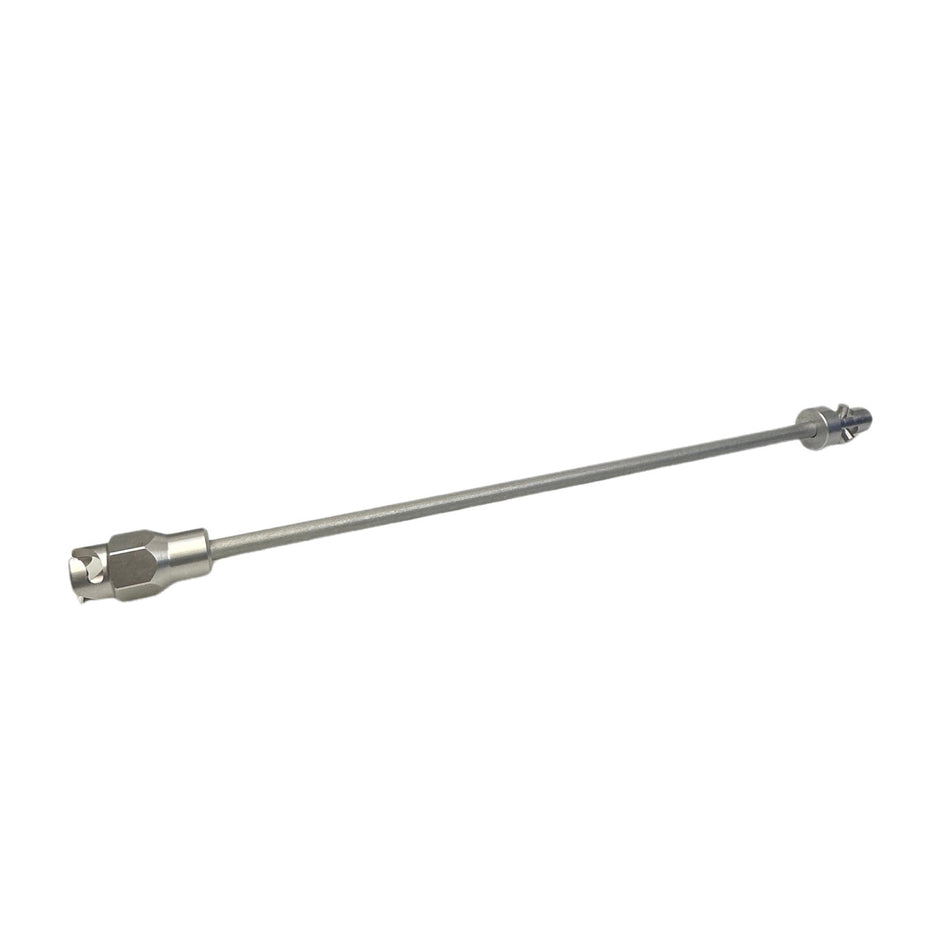

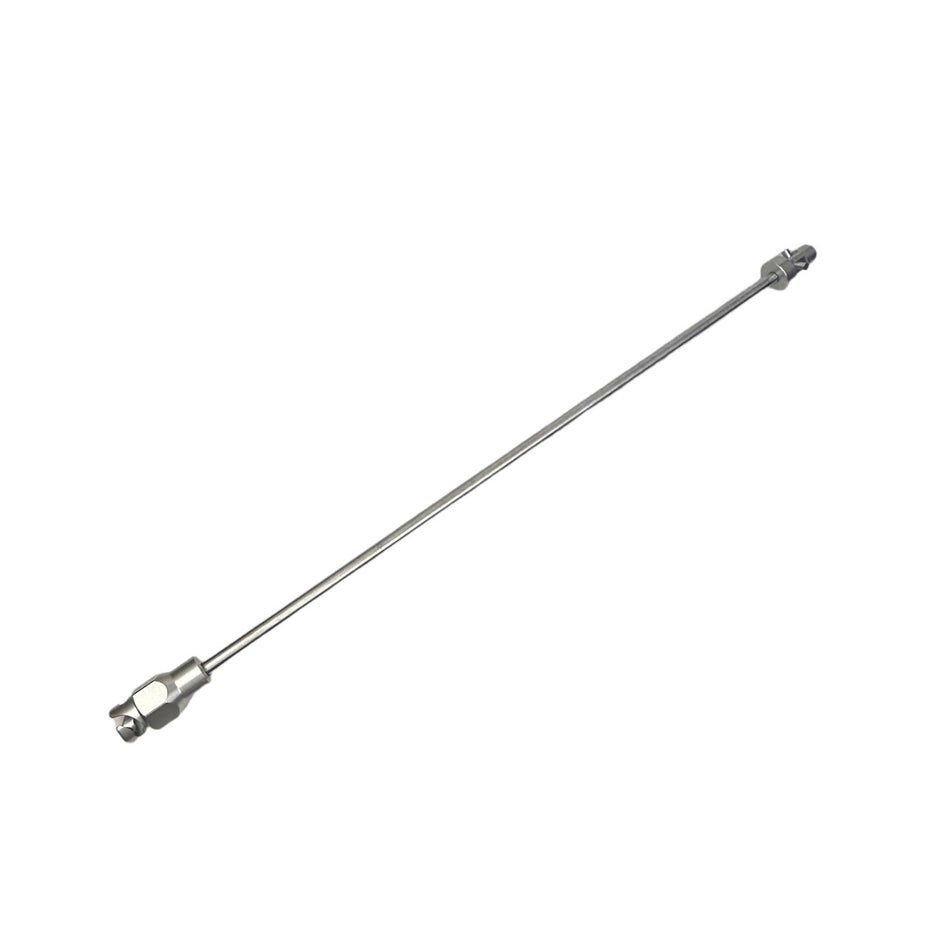

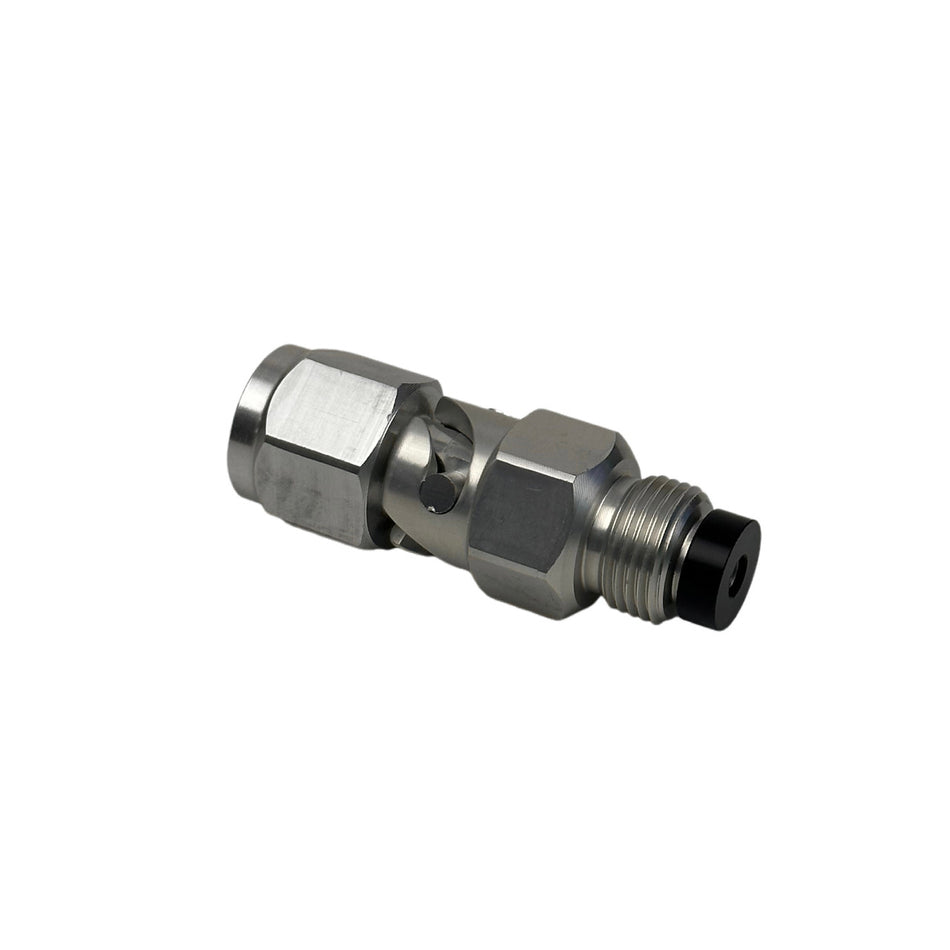

| Tip extensions |

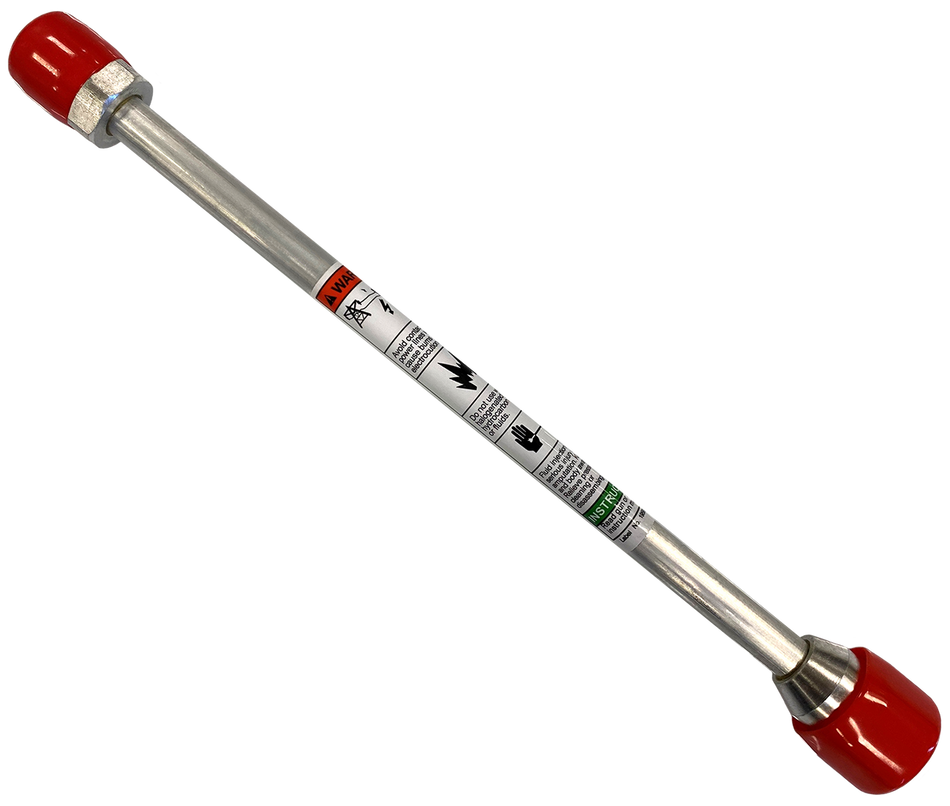

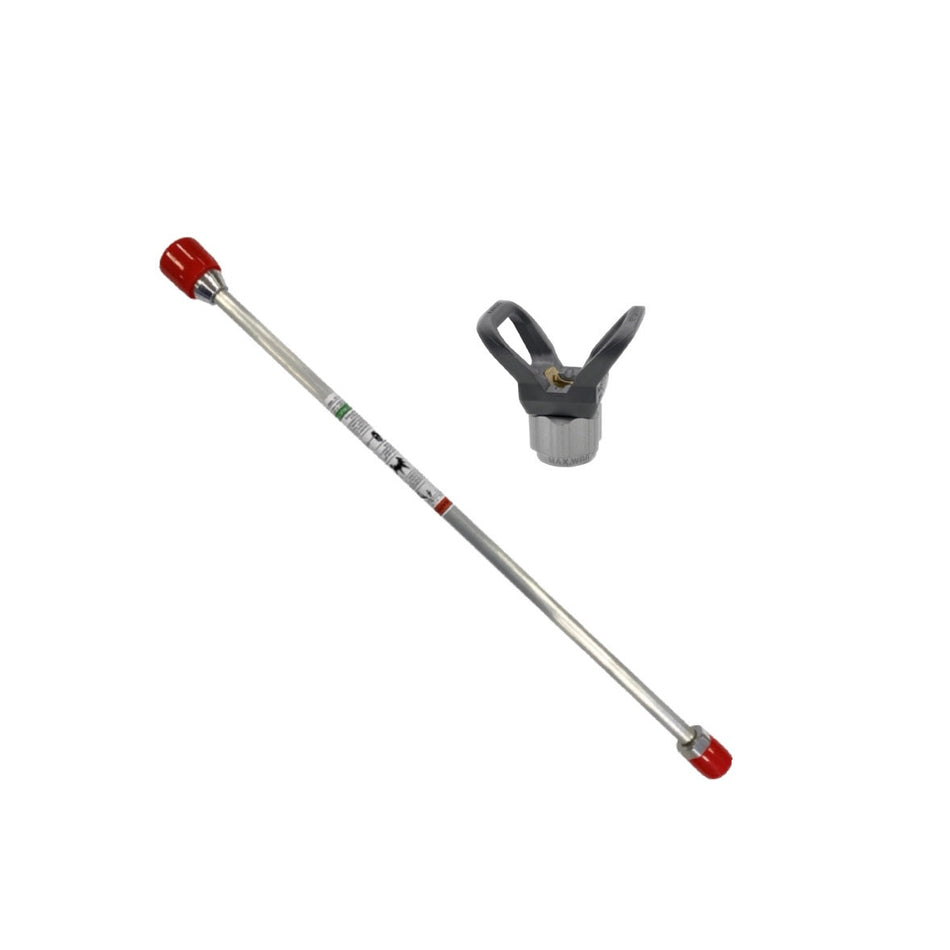

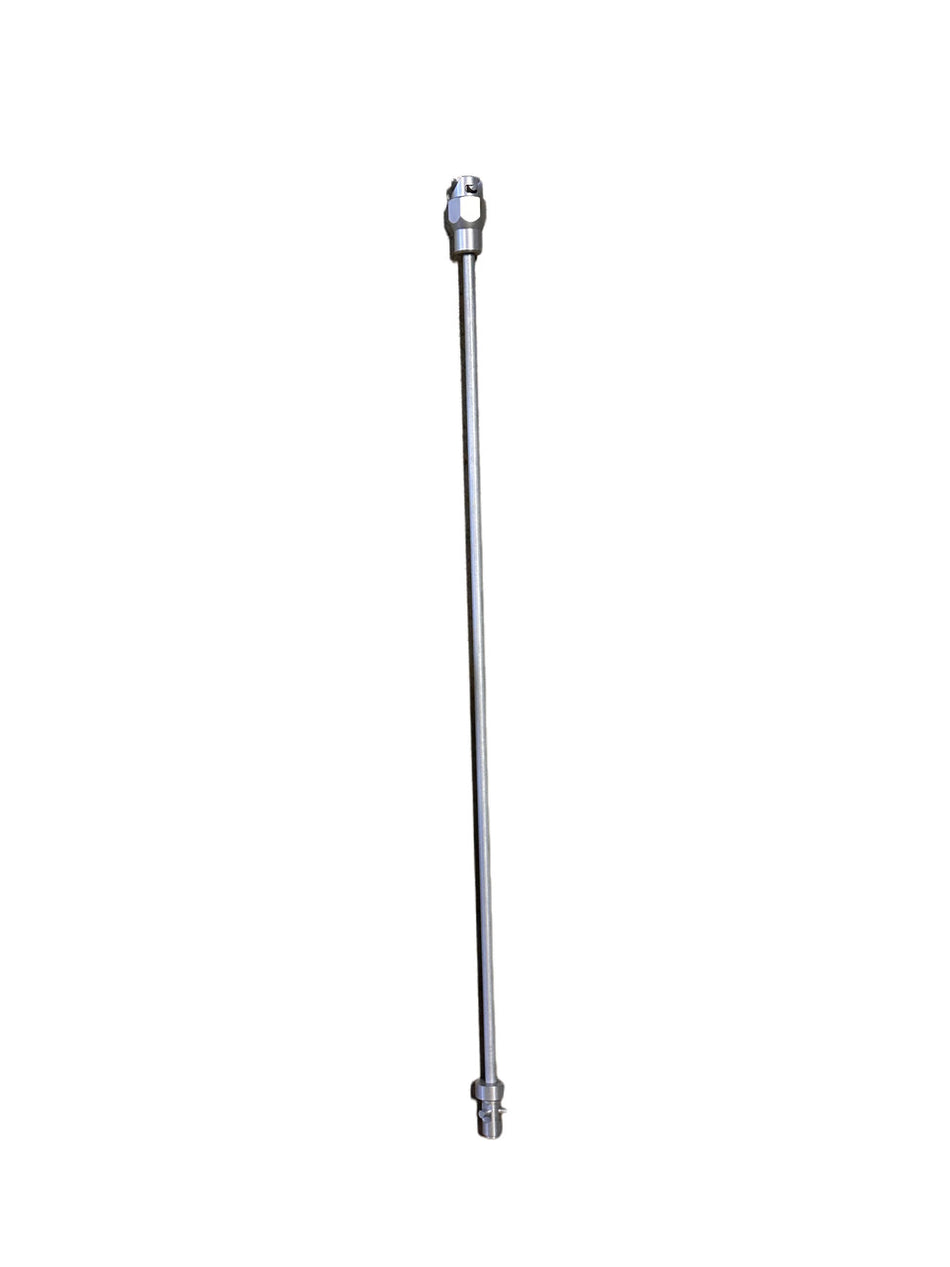

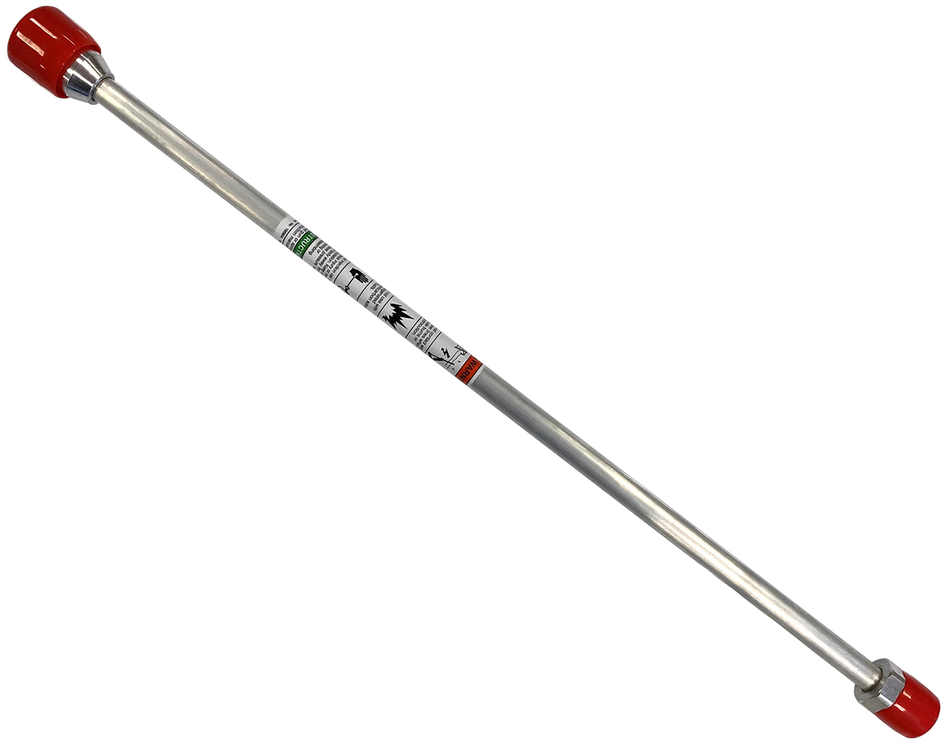

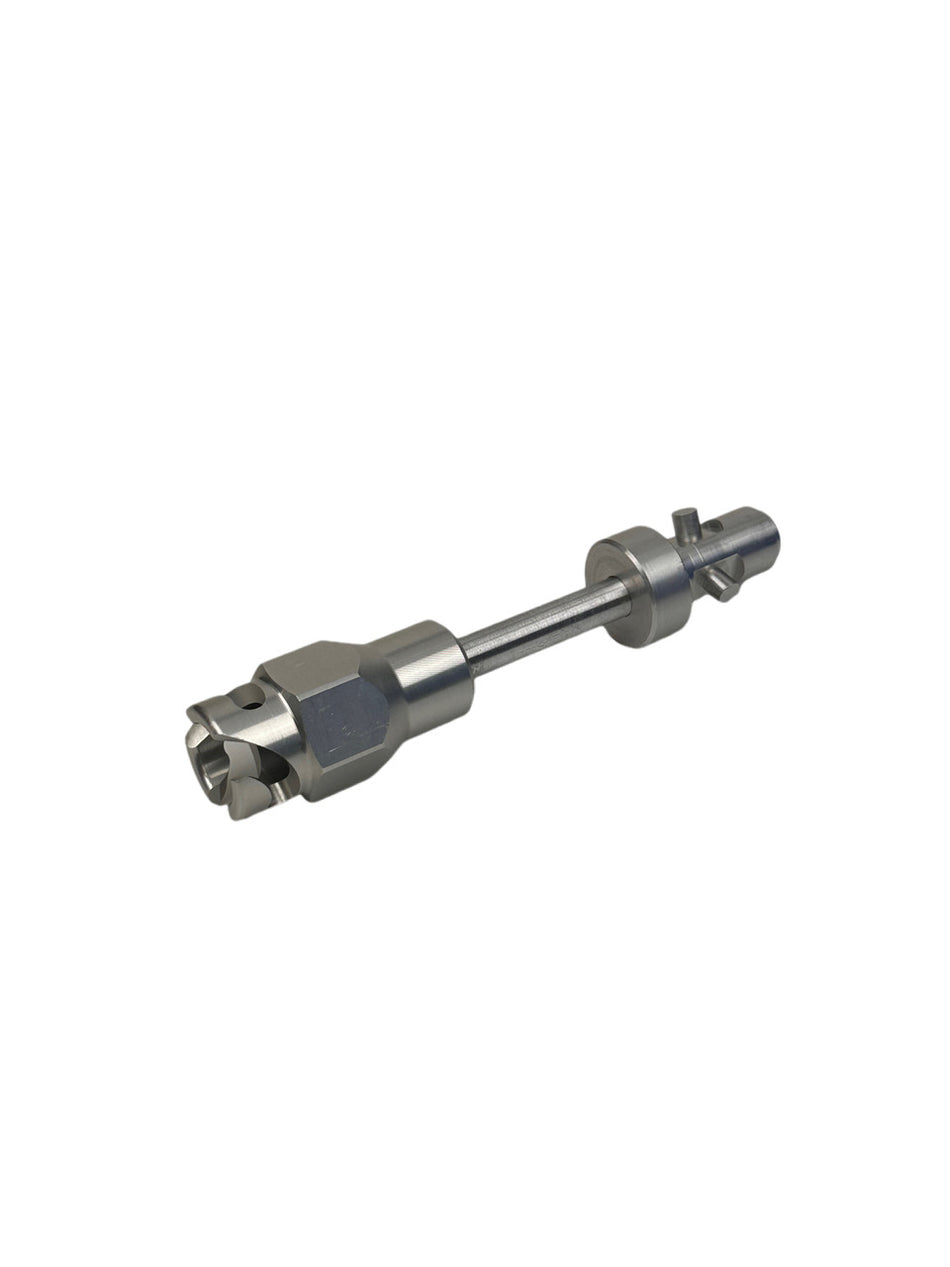

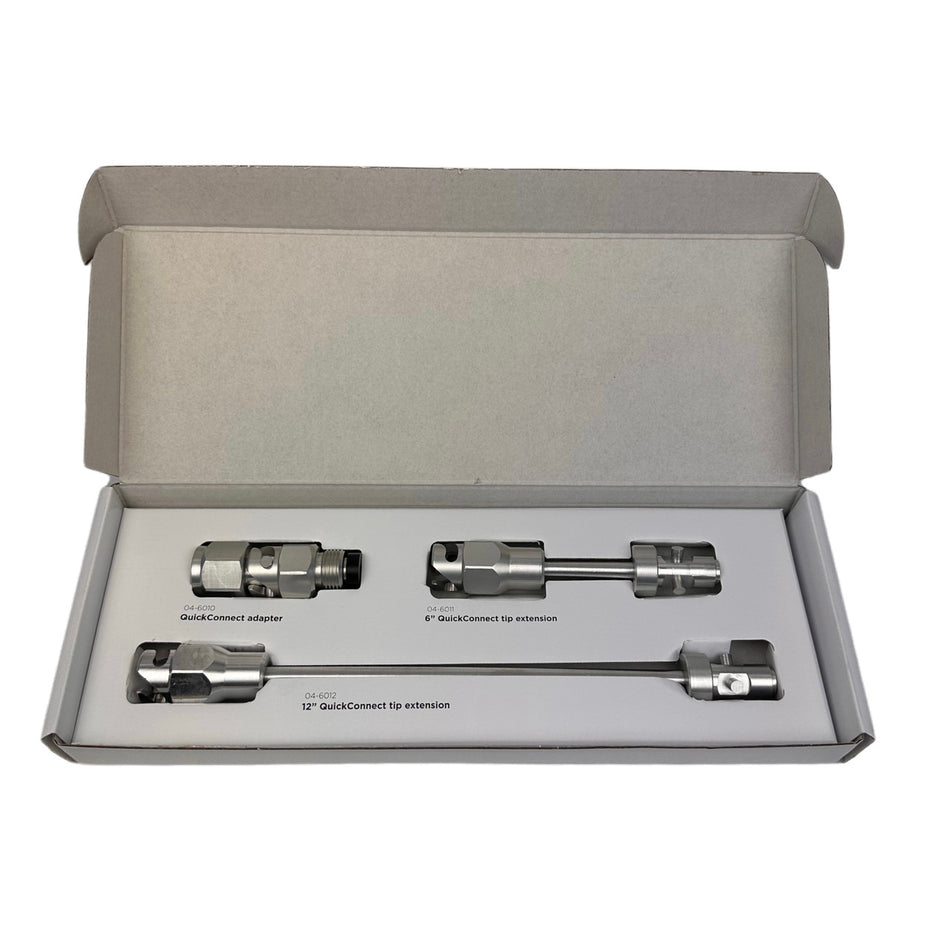

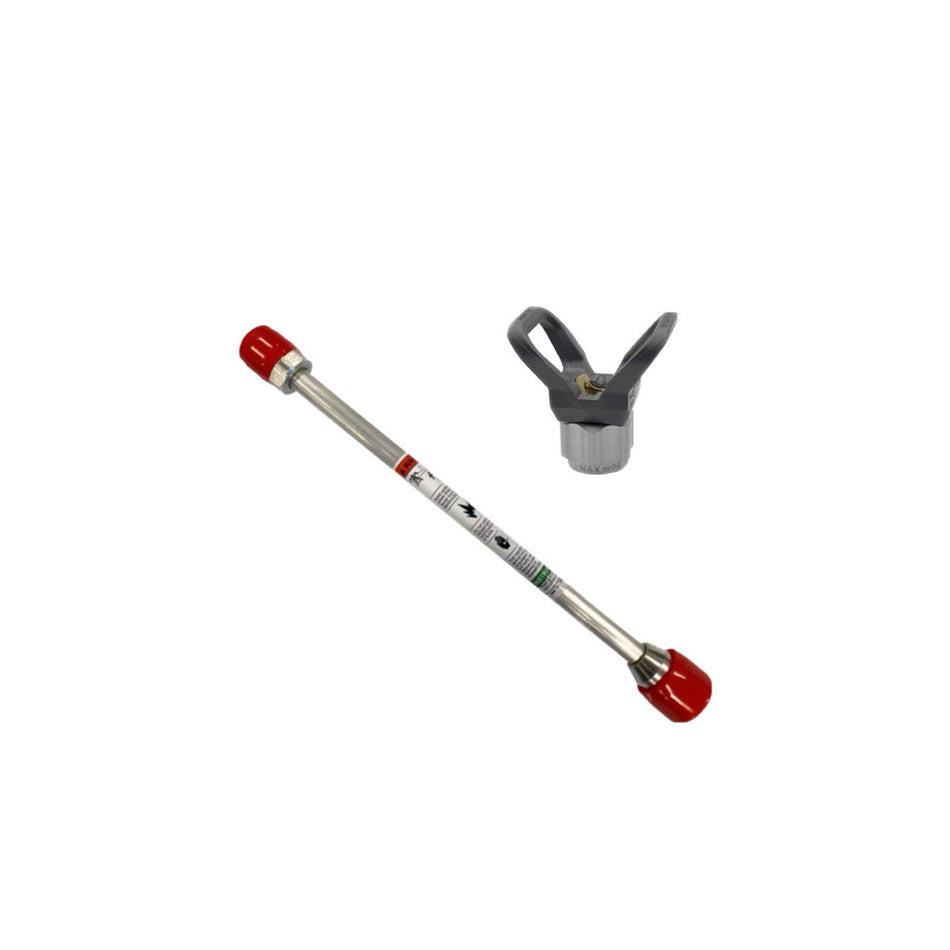

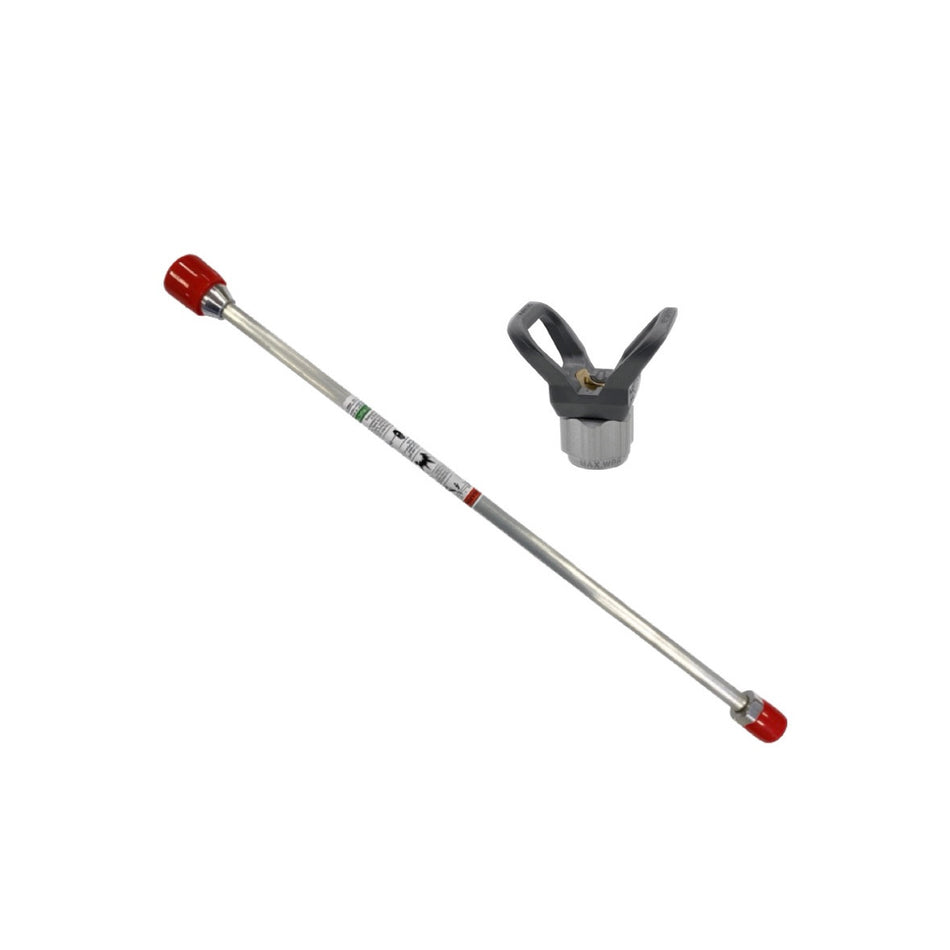

A rigid extension between the gun and the tip, in lengths from 6" upward, with and without an integral guard. Quick-connect versions let you swap lengths without tools. |
To reach ceilings, soffits, and interiors without moving a ladder, and to keep the gun body out of tight spaces. |
| Pole extensions & swivels |
Longer reach in metre-length poles, some with a spray guide, plus swivels that angle the tip relative to the pole. |
For high walls, ceilings, and overhead work where an extension alone is not long enough. |
| Restrictors |
Control fluid flow through the gun for a more consistent spray pattern. |
When a setup delivers more flow than the application needs. |
Sizing a carbide insert
Carbide inserts use the same numbering as the tips they go into, so a 515 insert matches a 515 tip:
- Last two digits = orifice size in thousandths of an inch. A 515 insert has a .015" orifice.
- First digit × 2 = fan width in inches at about 12" from the surface. A 515 sprays roughly a 10–12" fan.
Match the family as well as the number. A standard, fine finish, low pressure, and line striper insert of the same nominal size are ground differently and are not interchangeable.
Which tip range does my accessory belong to?
| If your tips are… | They fit | Matching insert family |
|---|
| Standard tips | Standard-barrel RAC 5 and SC-6 style guards | Standard carbide inserts |
| Large barrel tips | Large-barrel RAC X style guards | Standard carbide inserts, large-barrel guards |
| Fine finish tips | Standard-barrel RAC 5 and SC-6 style guards | Fine finish carbide inserts |
| Fine finish low pressure tips | Large-barrel RAC X style guards | Low pressure carbide inserts |
| Line striper tips | Standard-barrel RAC 5 and SC-6 style guards | Line striper carbide inserts |
| High pressure tips | Graco XHD style equipment | Heavy-duty XHD guards and seats |
Tip Accessories FAQ
What is a carbide insert?
It is the carbide element inside a reversible spray tip that forms the orifice and shapes the fan. Because it is the part that wears, replacing the insert restores the rated spray pattern without buying a complete tip assembly.
How do I know which insert size I need?
Use the number on your tip. The last two digits are the orifice in thousandths of an inch and the first digit doubled is the fan width, so a 517 tip takes a 517 insert. Also match the family — standard, fine finish, low pressure, and line striper inserts are ground differently.
Do I need a new tip guard when I change tip families?
Often yes. Standard-barrel and large-barrel RAC X tips use different guards, so moving between those families means a different guard. Moving between standard and fine finish tips does not, since both use the standard barrel.
What thread size are the extensions?
Most airless guns and extensions in this range use a 7/8" thread, and each product page states the thread it carries. Check that figure against your gun before ordering, especially when mixing brands.
Why is paint leaking around my tip?
Usually the tip seat and seal. That seal is a consumable and flattens with repeated tip changes; replacing it is far cheaper than replacing the guard or the gun's fluid head.
Are these genuine OEM parts?
No — Bedford parts are compatible replacements, not genuine Graco, Titan, or other OEM parts. Each is manufactured to OEM-equivalent dimensions so it fits and performs like the part it replaces, at a lower price.
Compatibility and cross-reference
Bedford tip accessories are compatible replacements cross-referenced to the original manufacturers' part numbers, including Graco and Titan. Search the OEM part number from your equipment manual — dashes optional — or open the Custom Lookup Tool to match parts to your machine. Related ranges: standard tips, large barrel tips, fine finish tips, fine finish low pressure tips, high pressure tips, and line striper tips.
